Kuab FWD 50

Kuab - bearing capacity measurement

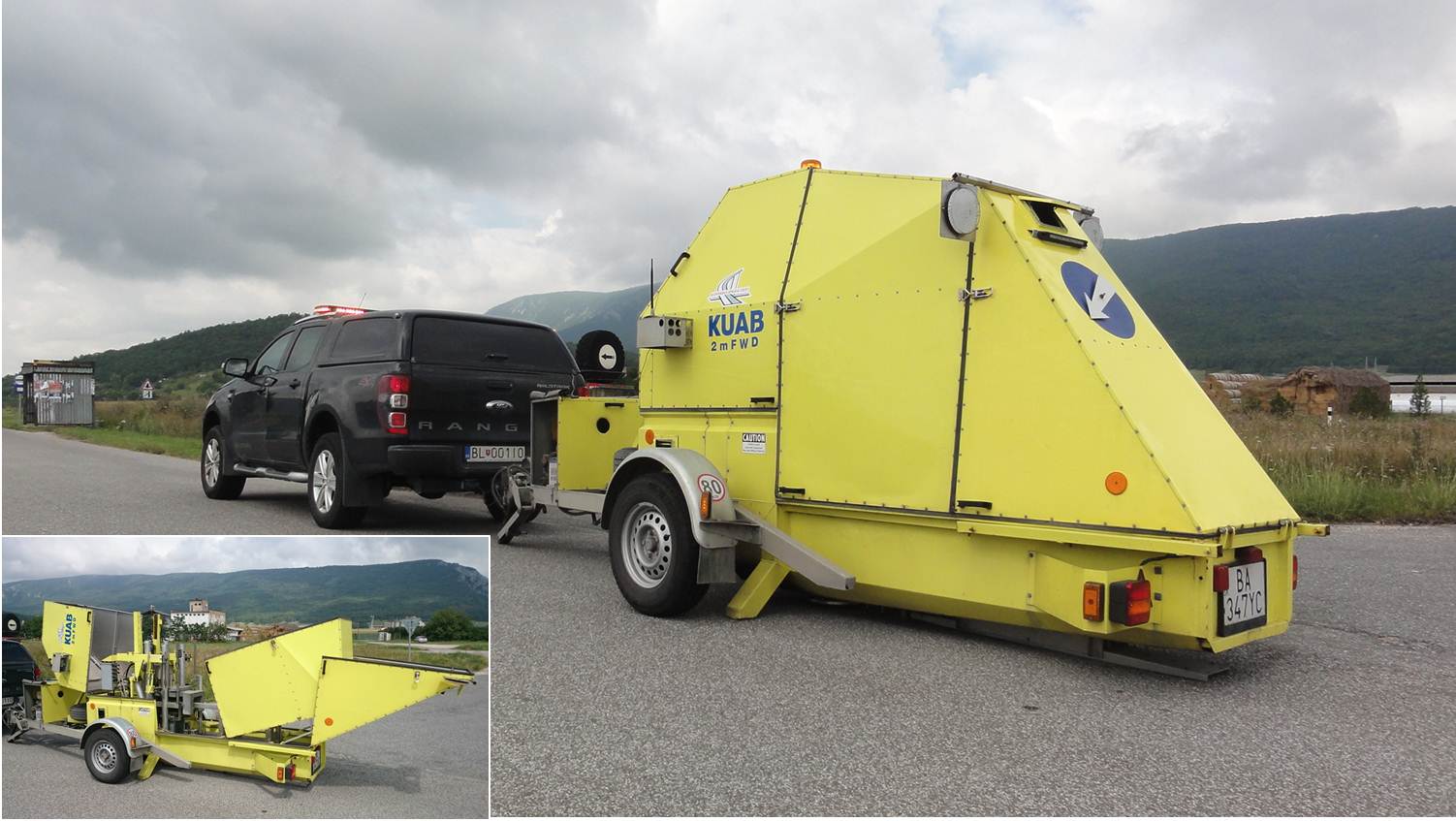

KUAB FWD (Falling Weight Deflectometer)  is a device capable of delivering dynamic loads to the pavement surface, similar in magnitude and duration to that of a single moving, heavy wheel load. The response of the pavement system is measured in terms of vertical deformation, or deflections, over a given area using deflection sensors.

MAIN PARTS

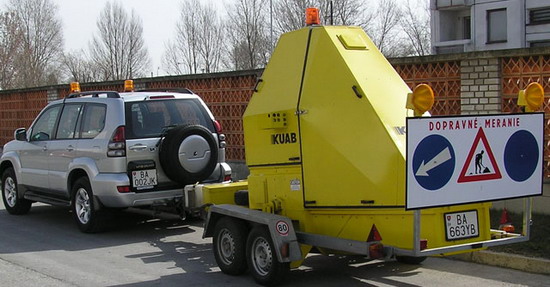

  • car – Toyota Landcruiser

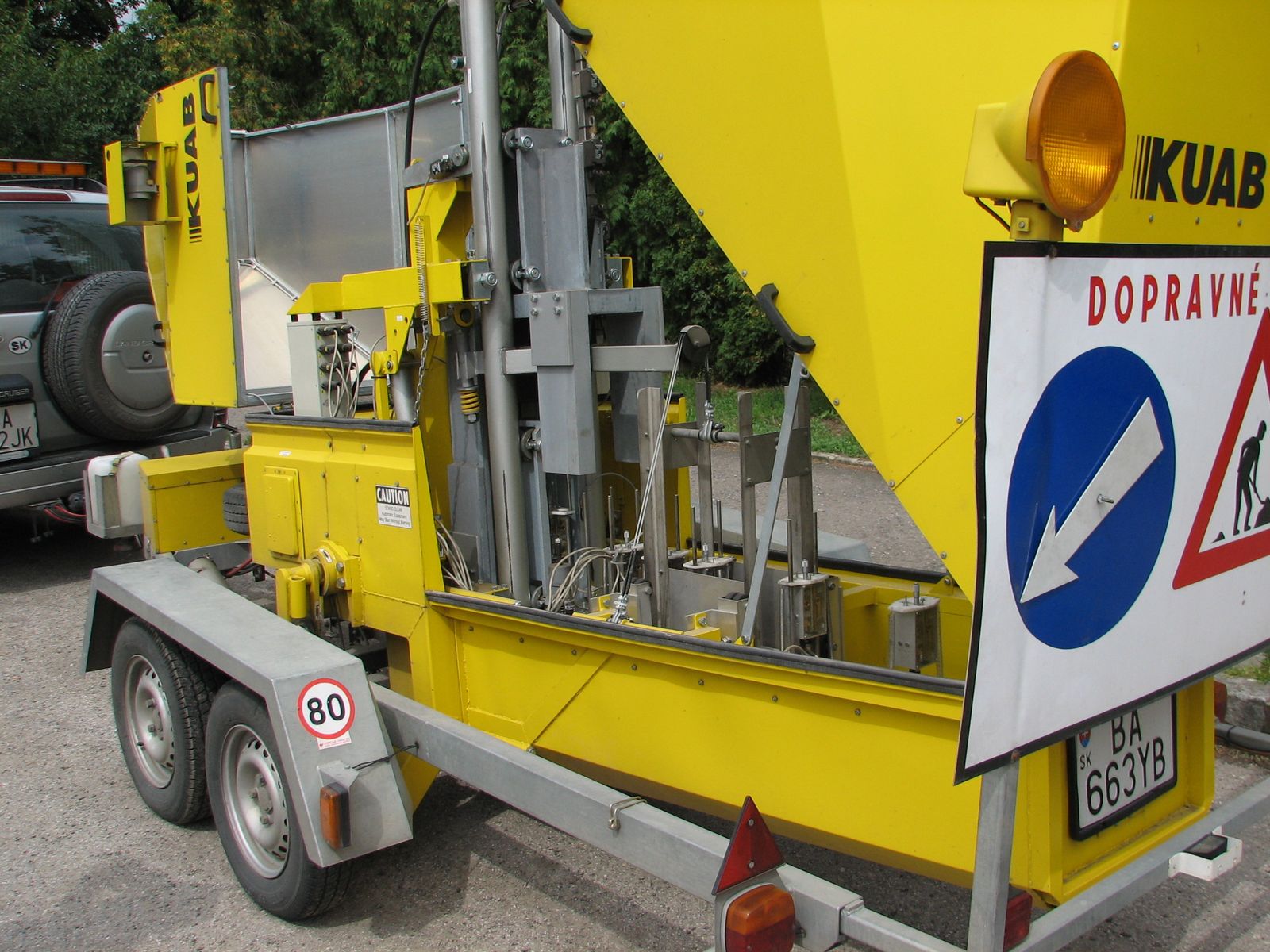

  • single axle/ double axle trailer with bump sensors and thermometers for measuring air and road surface temperature
    weight 1600 – 1800 kg, lenght 5,2 m x width1,9 m x height 2,5 m
  • odometer
  • control computer with accessories
  • KUAB software for device control and analysis of measured data

 MEASUREMENT ON THE ROAD – VIDEO

  Kuab - interiérmeasurement parameters:

  • load range : 12 –50 kN
  • load rise time : 23 – 17 msec
  • load duration : 60 – 40 msec
  • segmented load boards: priemer 300 mm
  • bend sensors
  • number of seismomoters : 7 pcs
  • accuracy : 1 mikrometer
  • temperature measuring
  • air thermometer
  • infrared thermometer for measuring road surface temperature

Kuab - detail obtained road characteristics:

  • vertical deformation, or deflections
  • bearing capacity

Kuab

 Updated: 14.9.2016

Published: 1.12.2010
