Profilograph

Profilograph - meraniamain parts:

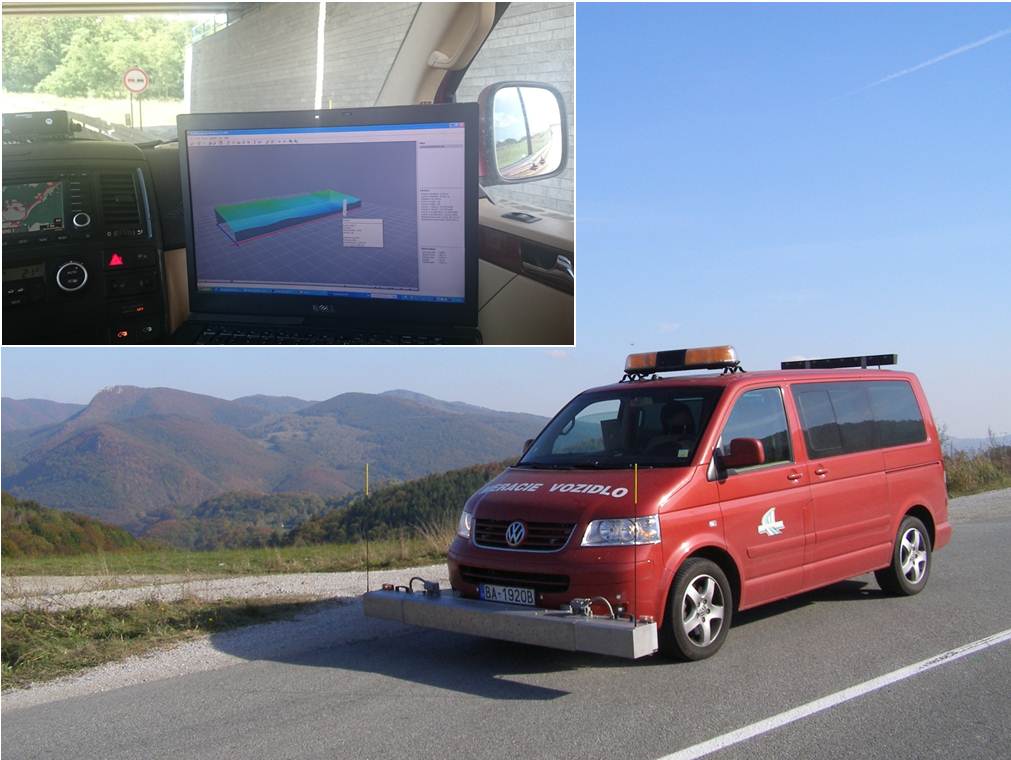

  • car : VW Multivan
  • measuring beam contains
    • 16 laser sensors
    • 3 accelerometers
    • 2 gyroscops + control unit
  • an odometer is mounted on the wheel of the vehicle and in combination with the inertial system

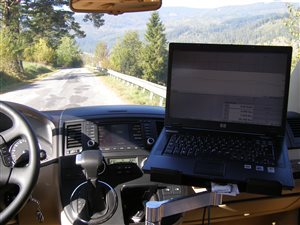

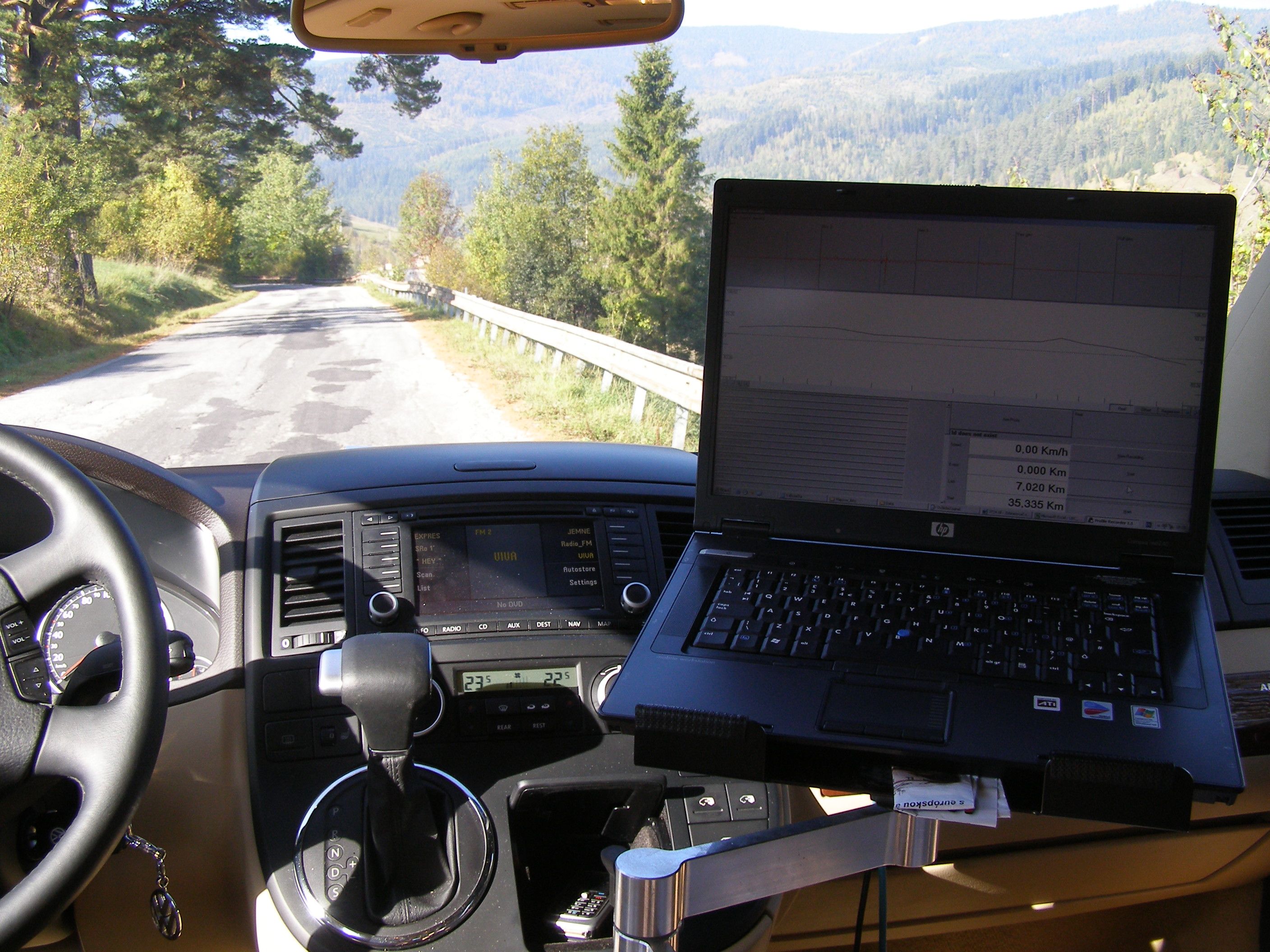

  • operation unit  for previewing data
  • software for calibration and  the analysis of the measurement data
  • GPS

  measurement on the road - video

Profilograph - merania


measurement parameters

  • width measurement of cross section of the road: 2.70 m with a width of 2.55 meters measuring beam
  • measuring speeds : 20-110 km/h, (optimum 60 - 80 km/h)
  • frequency of reading and saving data:: 72 samples /100 mm at 80 km/h and frequency imaging 16 kHz
  • precision measuring rut depth 0,05 – 1 mm


outputs reports include:

  • Longitudinal and Transverse Profiles
  • Rut depth, Cross-Fall and Gradients
  • Radius of curvatures (vertical and horizontal)
  • IRI, APL, Straight Edge, Profilograph
  • GPS , geographical location of the measurement points
